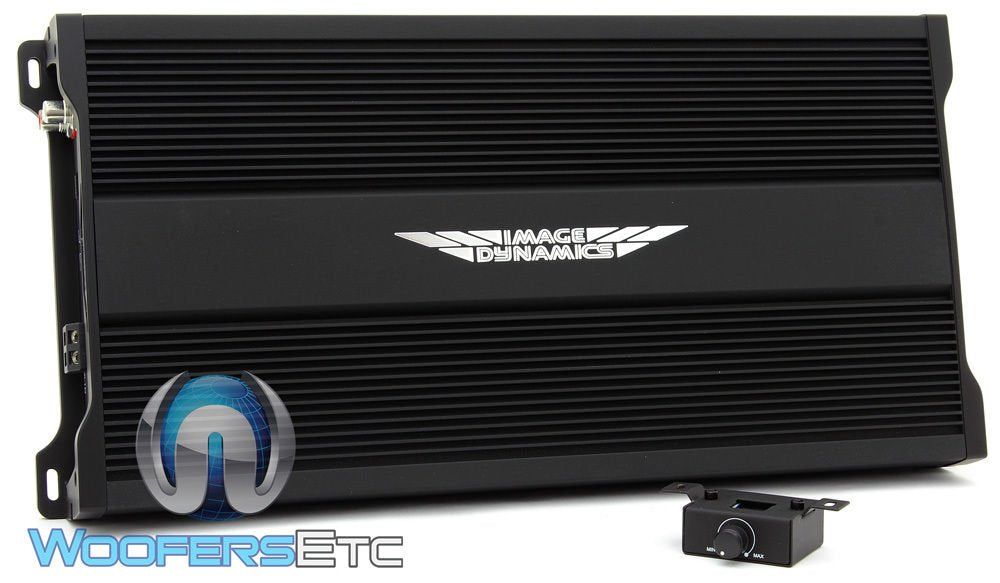

Image Dynamics SQ1200.1D Monoblock 1200 Watts RMS SQ Series Amplifier
Sale price
$101.00
Regular price $505.00
Skip to product information
Image Dynamics SQ1200.1D Monoblock 1200 Watts RMS SQ Series Amplifier
Sale price
$101.00
Regular price $505.00
- Image Dynamics SQ-Series Car Amplifier | Class-D FullRange 1-Ohm Stable Monoblock Amplifier | RMS Power Rating: 4 ohms: 400 watts x 1 chan. | 2 ohms: 800 watts x 1 chan. | 1 ohm: 1200 watts x 1 chan. | Total power output: 1200 watts

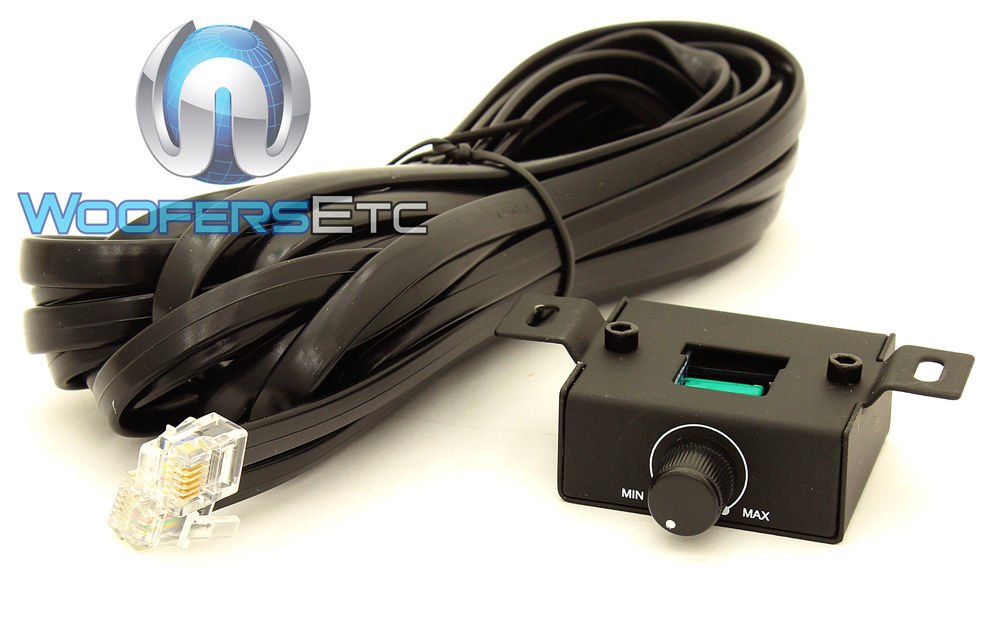

- Pulse Width Modulated MOSFET power supply | Wired remote bass level control included | LED power (green) and protect (red) indicators | Soft start turn-on
- Mono channel operation | 3-way protection circuitry (thermal, overload, and speaker short protection) | Dual speaker terminals simplify the hookup of multiple speakers |Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- Input sensitivity: Low level: 200mV-5V | Frequency Response: 10 - 20,000 Hz | Signal to Noise Ration: 98 dB | Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
- Subsonic filter: 15 - 45 Hz , 12 dB/octave | Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz | Dimensions: 8-1/2"W x 20"L x 2-1/4"H
