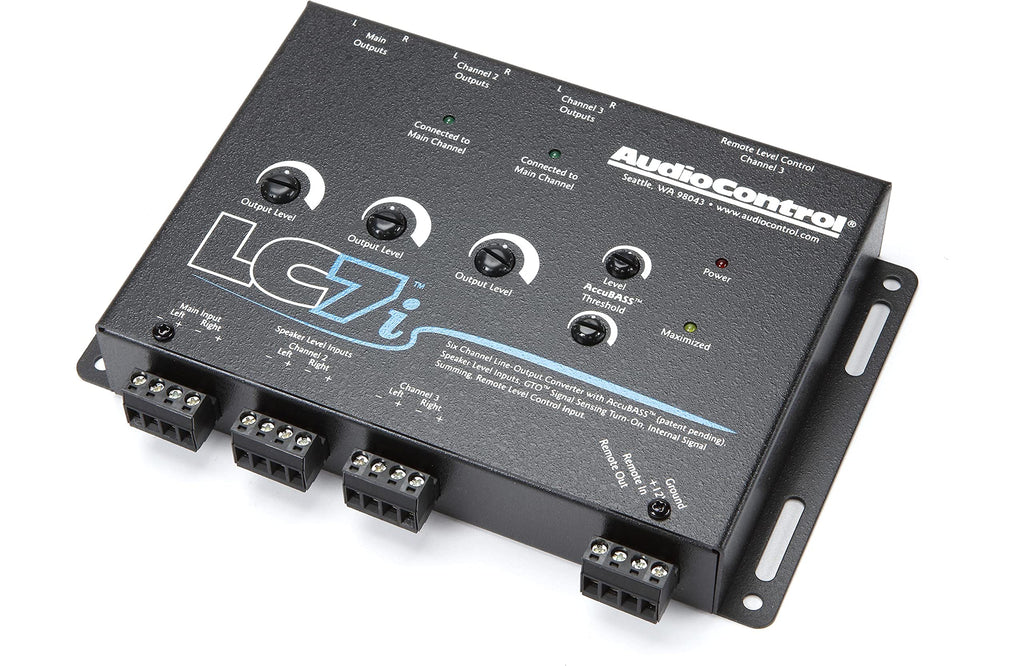

AudioControl LC7i Black 6-Channel Line Output Converter with Bass Restoration
Sale price
$34.00
Regular price $169.00
Skip to product information
AudioControl LC7i Black 6-Channel Line Output Converter with Bass Restoration
Sale price
$34.00
Regular price $169.00
- Package Includes: (1) AudioControl LC7i 6 Channel Active Line Out Hi/Lo Converter+Bass Processor DSP. (1) AudioControl ACR-1 Remote Level Control Knob For The Epicenter, LC6i, LC7i, LC2i. Whats in the box: Power and speaker connectors. Manual. Warranty
- Six channels of active speaker level inputs accepts up to 400 watts per channel. Patent Pending AccuBASS circuitry. Optional ACR-1 Remote allows for user control of the subwoofer level. Internal Channel Summing For interfacing with factory installed amplifiers with built-in crossovers
- GTO (Great Turn-On) Circuit Powers up the LC7i when it detects signal on the speaker. level input. Output level control. Compact chassis allowing for ease of installation. Speaker Level Inputs: 3 (6 channels). Maximum Input (speaker level): 400W per channel at 4O. Input Impedance: 20kO
- Preamp Outputs: 3 (6 channels). Maximum Output Level: 8.5Vrms. Output Gain: 12dB. Output Impedance: 150O. Total Harmonic Distortion: 0.01%. Frequency Response: 10Hz-22kHz. Remote In. 12VDC Remote Out (always active when unit is on). Power Supply: High Headroom PWM Switching. Current Draw: 350mA
- Recommended Fuse Rating: 2A. Dimensions: 7.5W x 4.7D x 1.2H. Weight: 1.5 lbs (0.7 kg). Whats in the box: 20 Phone Cable. LC2i. LC6i. LC7i. Overdrive Plus. Matrix Plus. 6XS. The Epicenter. LC-4.800. LC-6.1200. LC6. LC8. Original Epicenter (bypass not supported)
